ER.10.404 Special Guide
Ceramic guides made to a machine-specific shape. Plates, angled bodies and custom bores belong to this group.
Shared image for the catalogue page — not a photo of this part.

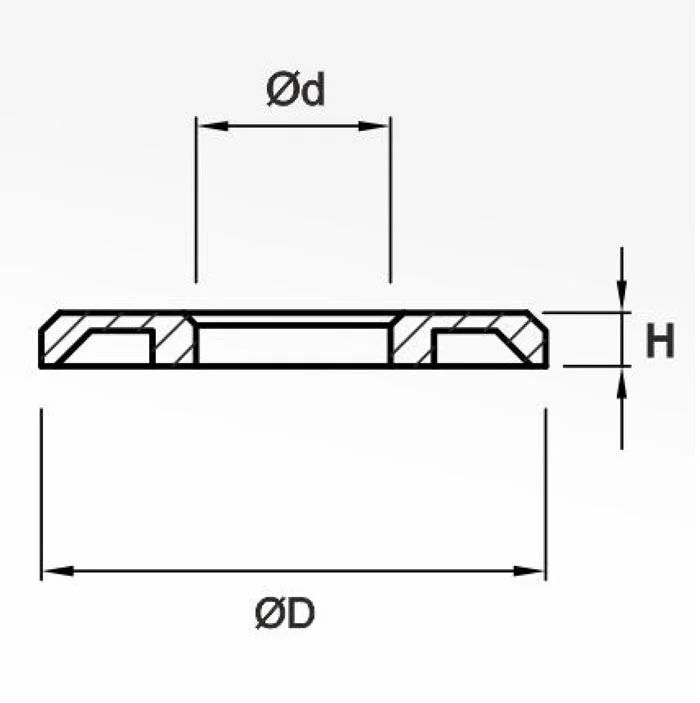

Dimension letters are marked on the technical drawing.
Dimensions
- ØD
- 22mm
- ØD1
- 17.5mm
- Ød
- 5.5mm
- H
- 3.5mm
Similar products
Hover over a card or tap the dots below it to see that product’s dimensions or technical drawing.
Product group: Special Guides · Product code: ER.10.404 · ØD 22 · ØD1 17.5 · Ød 5.5 · H 3.5
