ER.01.034 Eyelet Guide
Flanged, through-bored guides for textile machinery and cable-industry ceramics, steering yarn and wire where they pass through the machine.

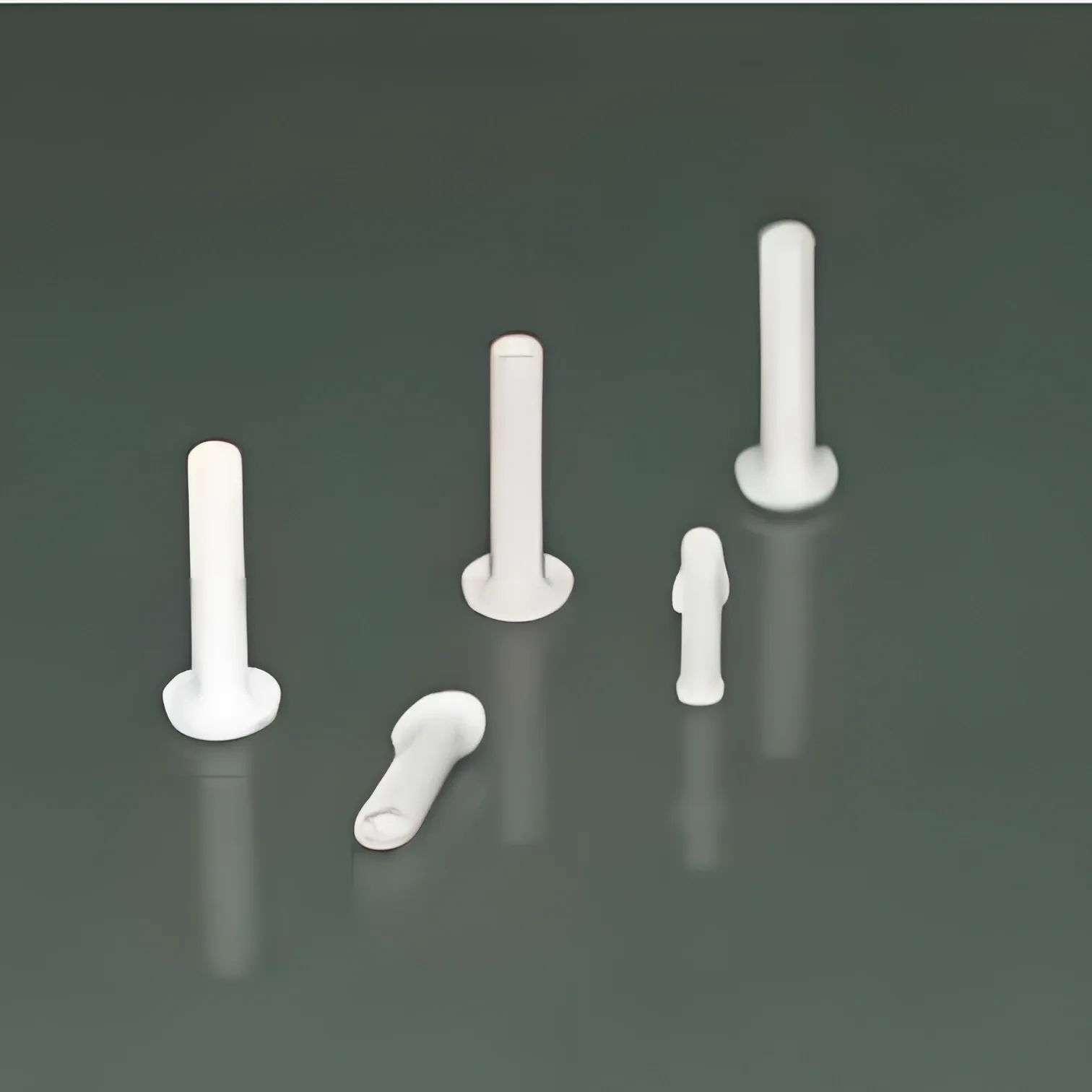

Shared image for the catalogue page — not a photo of this part.
Dimension letters are marked on the technical drawing.
Dimensions
- ØD
- 11,5mm
- D1
- 16,2mm
- Ød
- 7,1mm
- H
- 16,4mm
- h
- 12,5mm
Similar products
Hover over a card or tap the dots below it to see that product’s dimensions.
Product group: Eyelet Guides · Product code: ER.01.034 · ØD 11,5 · D1 16,2 · Ød 7,1 · H 16,4 · h 12,5
