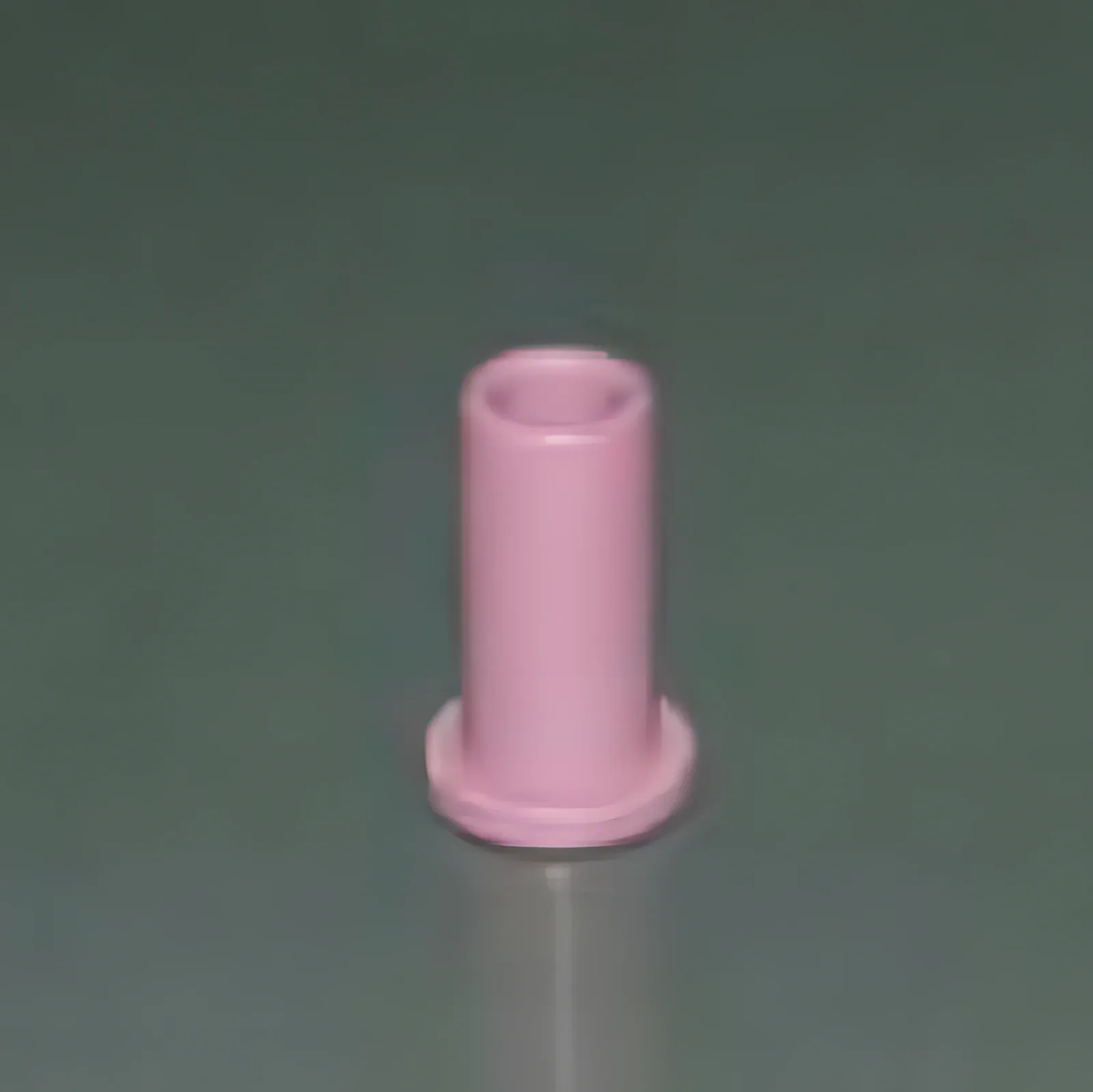

ER.01.102 Eyelet Guide
Flanged, through-bored guides for textile machinery and cable-industry ceramics, steering yarn and wire where they pass through the machine.
Dimension letters are marked on the technical drawing.
Dimensions
- ØD
- 9,4mm
- D1
- 15mm
- Ød
- 5,7mm
- H
- 33mm
- h
- 30,5mm
