ER.01.628 Eyelet Guide
Ceramic eyelets used at the points where yarn and wire pass through. Different bore and body sizes adapt them to a range of mounting arrangements.

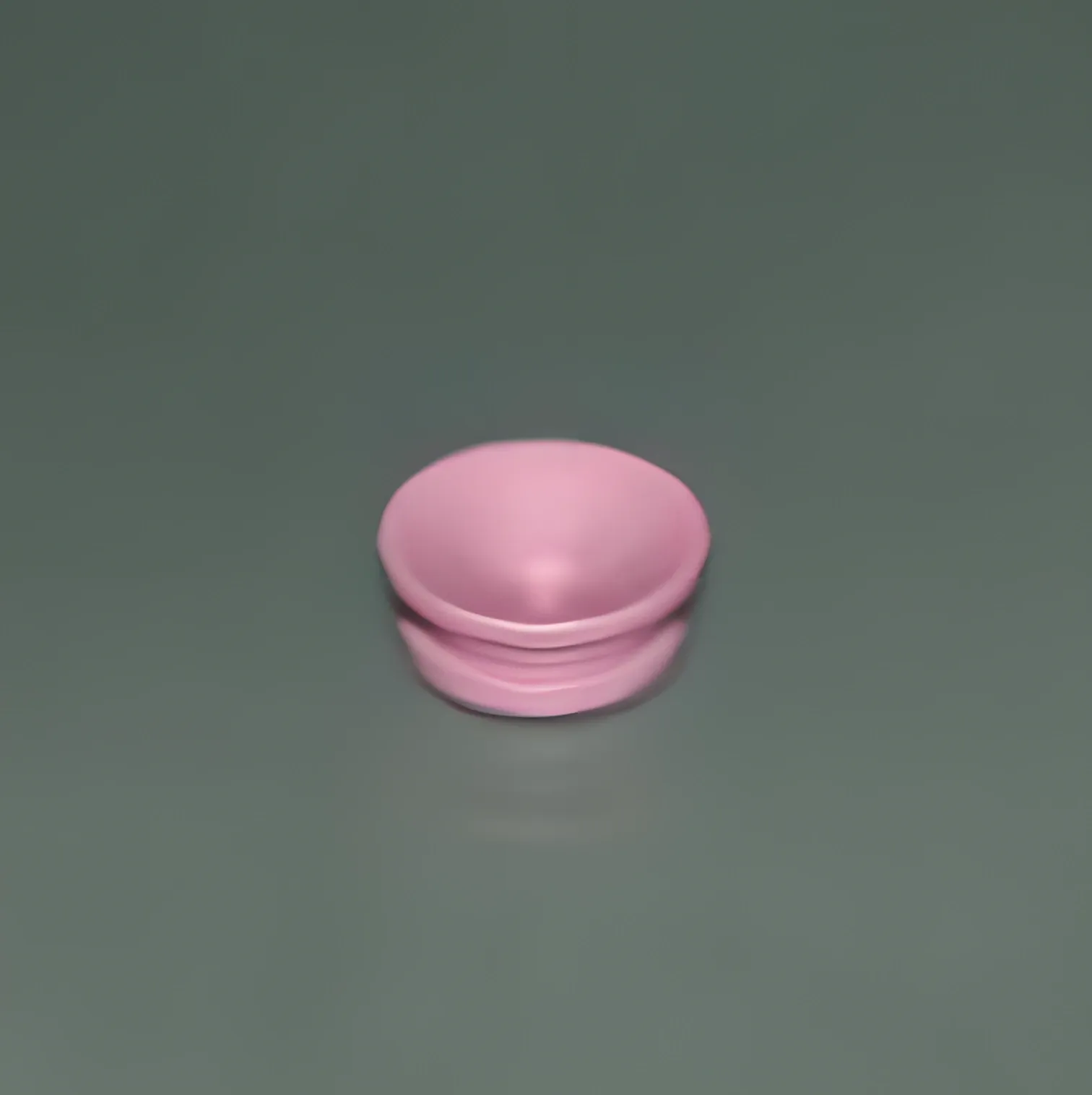

This image is shared by the products on that catalogue page; it may not show the product you selected.
Dimension letters are marked on the technical drawing.
Dimensions
- ØD
- 8,5mm
- ØD1
- 10,7mm
- Ød
- 6,7mm
- e
- 8,5mm
- H
- 3,6mm
- h
- 2,3mm
Applications
- textile
- cable
- wire drawing
- winding
- twisting
Similar products
Hover over a card or tap the dots below it to see that product’s dimensions.
Product group: Eyelet Guides · Product code: ER.01.628 · ØD 8,5 · ØD1 10,7 · Ød 6,7 · e 8,5 · H 3,6 · h 2,3
