ER.01.024 Eyelet Guide
Flanged, through-bored guides for textile machinery and cable-industry ceramics, steering yarn and wire where they pass through the machine.

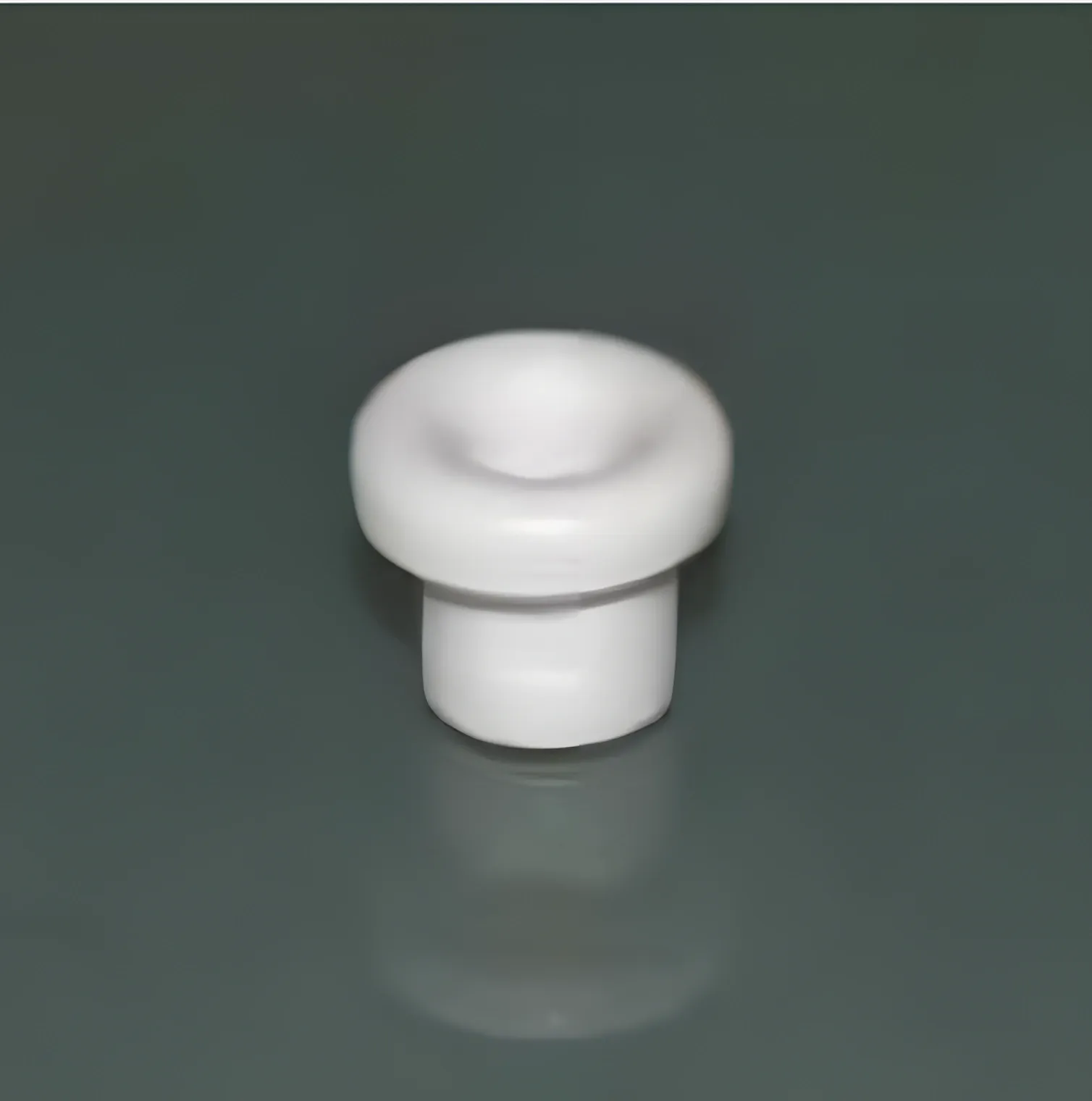

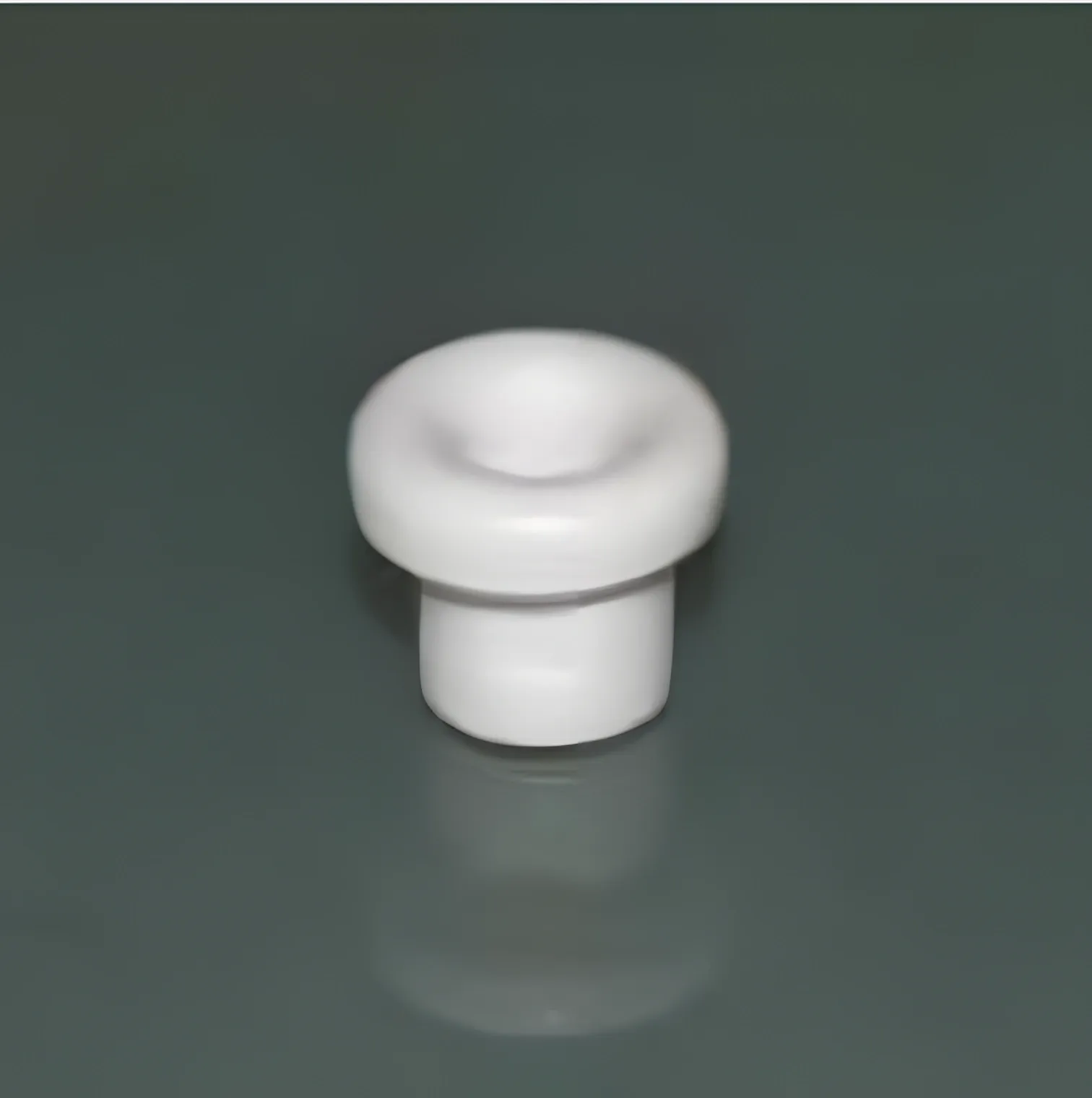

Shared image for the catalogue page — not a photo of this part.
Dimension letters are marked on the technical drawing.
Dimensions
- ØD
- 17,5mm
- D1
- 21,6mm
- Ød
- 12,1mm
- H
- 13,2mm
- h
- 9,5mm
Similar products
Hover over a card or tap the dots below it to see that product’s dimensions.
Product group: Eyelet Guides · Product code: ER.01.024 · ØD 17,5 · D1 21,6 · Ød 12,1 · H 13,2 · h 9,5
