ER.02.112 Rolling Guide
Shaft-mounted ceramic rollers with two flanges. They carry the thread line on a turning body wherever yarn or wire changes direction.

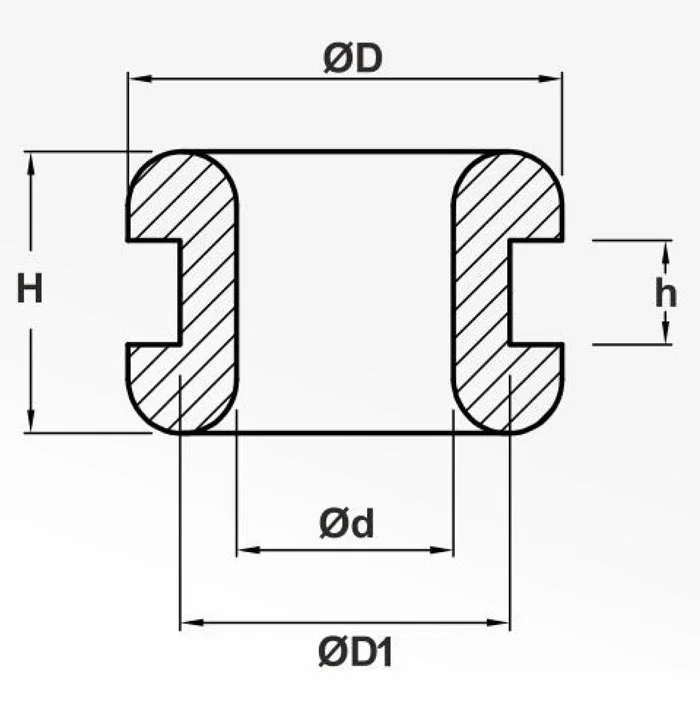

Shared image for the catalogue page — not a photo of this part.
Dimension letters are marked on the technical drawing.
Dimensions
- ØD
- 9mm
- ØD1
- 7.3mm
- Ød
- 4.7mm
- H
- 8.4mm
- h
- 4.6mm
This code appears more than once in the catalogue; we are checking it against the printed copy.
