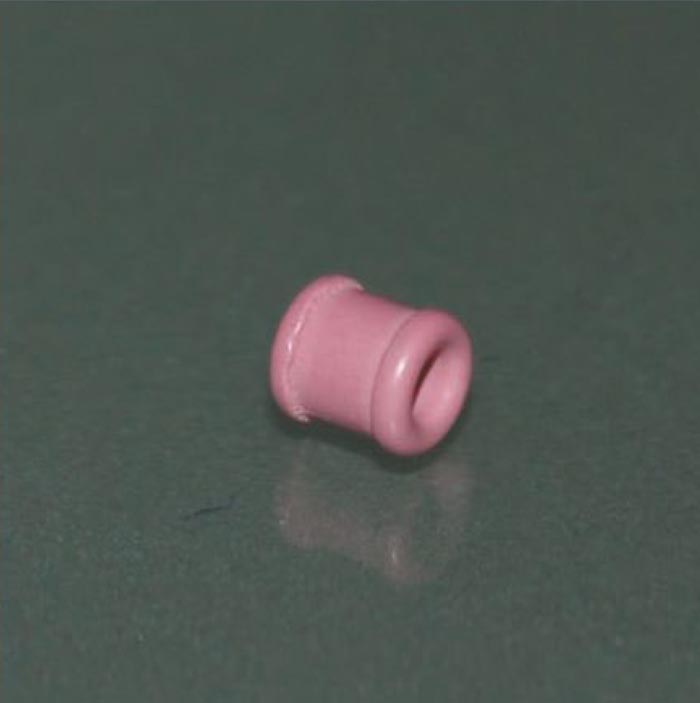

ER.02.187 Rolling Guide
Shaft-mounted ceramic rollers with two flanges. They carry the thread line on a turning body wherever yarn or wire changes direction.
Dimension letters are marked on the technical drawing.
Dimensions
- ØD
- 9.5mm
- ØD1
- 7mm
- Ød
- 4.3mm
- H
- 8.7mm
- h
- 4.5mm
