ER.10.153 Special Guide
Ceramic guides made to a machine-specific shape. Plates, angled bodies and custom bores belong to this group.
Shared image for the catalogue page — not a photo of this part.

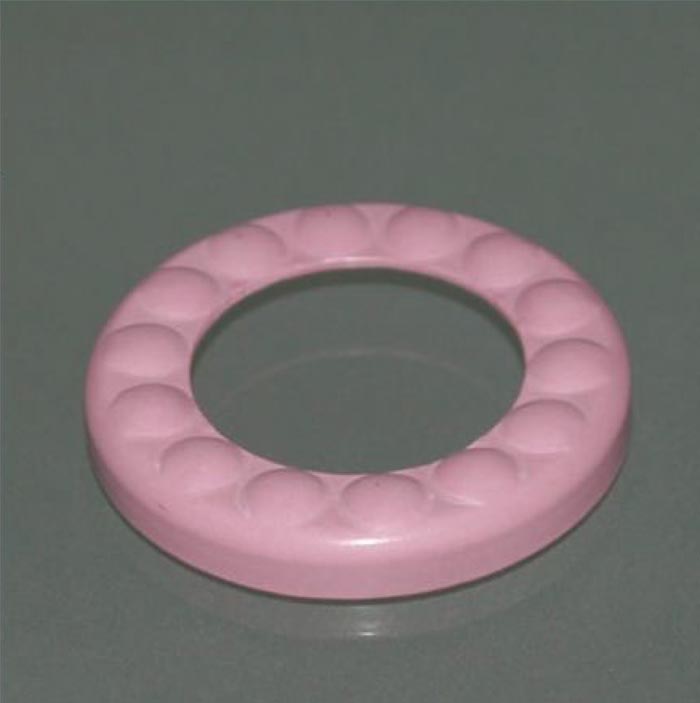

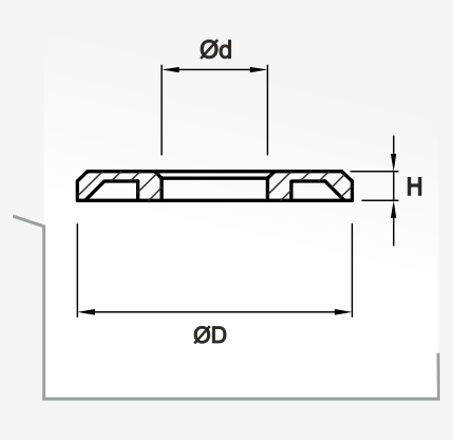

Dimension letters are marked on the technical drawing.
Dimensions
- ØD
- 8.1mm
- ØD1
- 11.4mm
- Ød
- 4.4mm
- H
- 6mm
- L
- 20mm
Similar products
Hover over a card or tap the dots below it to see that product’s dimensions or technical drawing.
Product group: Special Guides · Product code: ER.10.153 · ØD 8.1 · ØD1 11.4 · Ød 4.4 · H 6 · L 20
